Shield

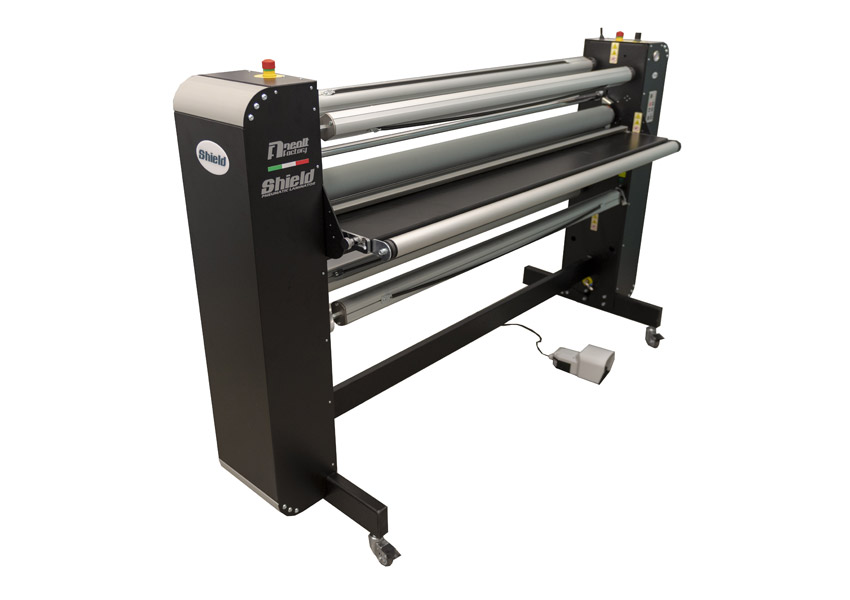

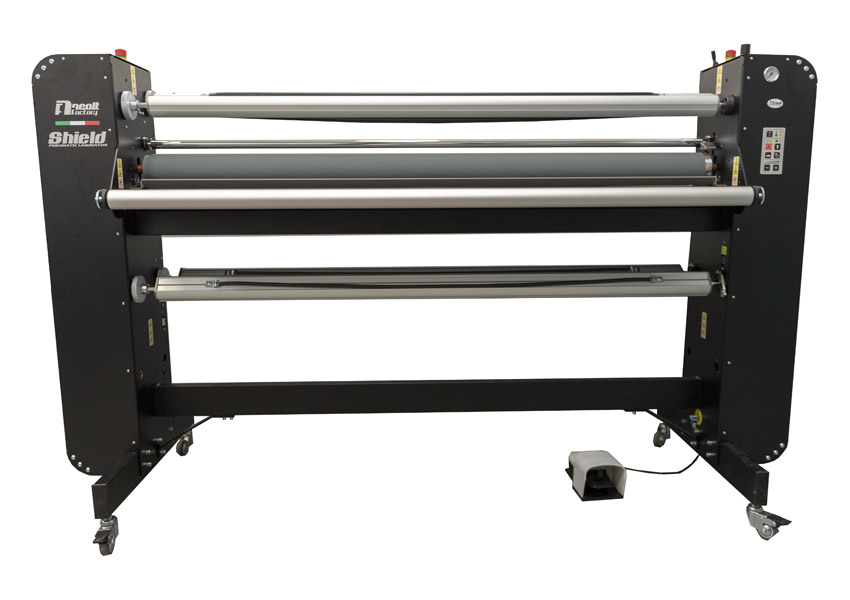

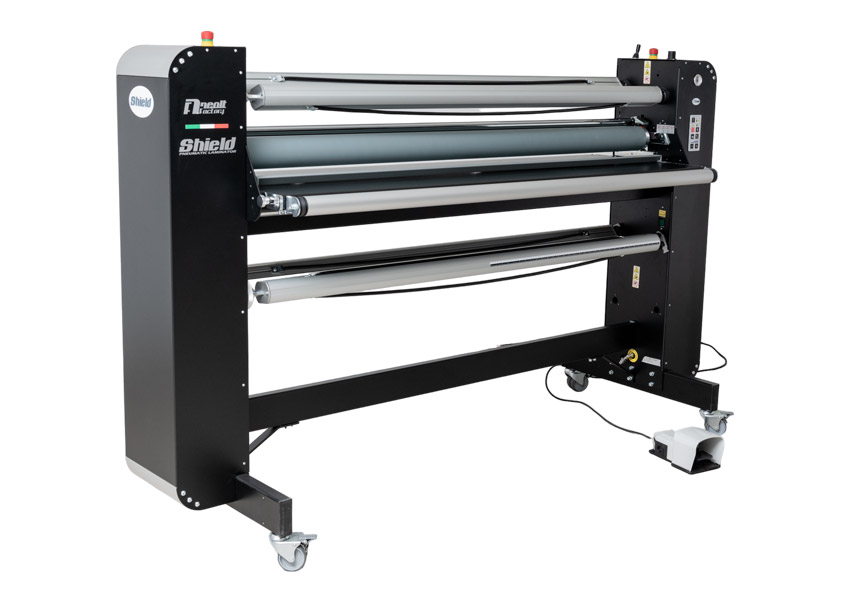

Professional Car Wrapping Laminator
Professional Car Wrapping Laminator SHIELD thanks to the air pressure system with independent pistons, automatically adapts to different thicknesses and different materials often not completely flat, ensuring perfect lamination of paper and vinyl.
Maximum lamination thickness
 | 30mm |
Length
 | 1650/2050mm |
Main features
-
Pneumatic laminator with internal silent compressor
-
Silicone Laminating Roll
-
Pneumatic pressure regulation
-
Easy pneumatic movement of the roll (up and down)
- Hand Safety Sensor
-
Plug and play
-
Air pressure system with independent pistons automatically adapts to different thicknesses
-
Tilting worktable
-
Adjustable stainless steel clutches
-
Pedal to start laminating in total safety
Optional
-
Roll descent stop (for rigid laminated substrates up to 30 mm)
- Adjustable feet
-
Motorized rewinder
-
Clutched unwinder
- Reference shoulder for rigid materials entry
-
Pneumatic and motorized vertical cutting
- Resistance 50°C
-
Front roll
-
Rear roll
Technical Data
The manufacturer reserves the right to change the technical and aesthetic specifications without prior notice.
Dimensions: 220 x 78 x h150 cm
Width: 1650 mm
Speed: 4 m/min
Maximum lamination thickness: 30 mm
Table height: 910 mm
Weight: 183 kg
Power consumption : 230v - 50Hz / 110v - 60Hz
Absorption: Max. 2,5A - 400W
Compressor: 6Bar
Width: 1650 mm
Speed: 4 m/min
Maximum lamination thickness: 30 mm
Table height: 910 mm
Weight: 183 kg
Power consumption : 230v - 50Hz / 110v - 60Hz
Absorption: Max. 2,5A - 400W
Compressor: 6Bar
