XY Matic Trim
plus online with Canon Colorado

Wallpaper Cutter

Wallpaper Cutter: XY MATIC TRIM PLUS ONLINE.

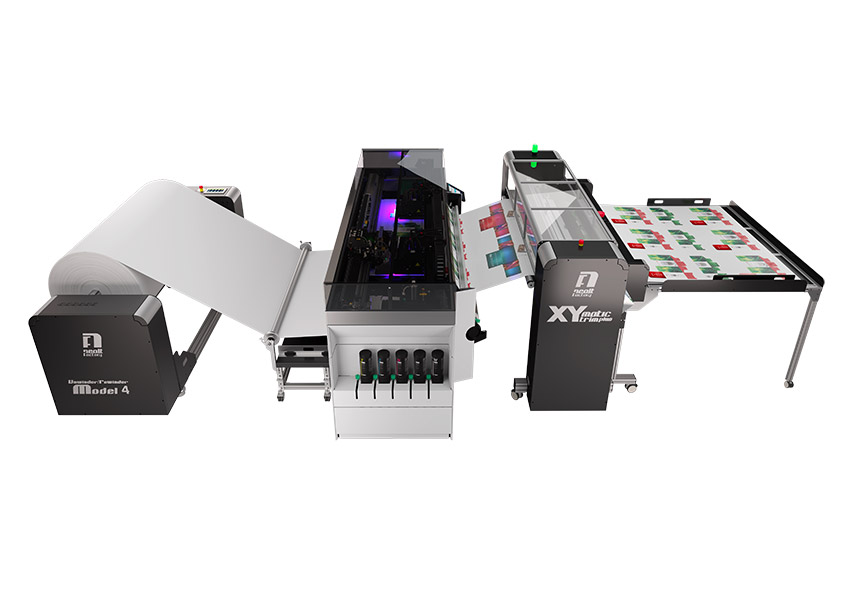

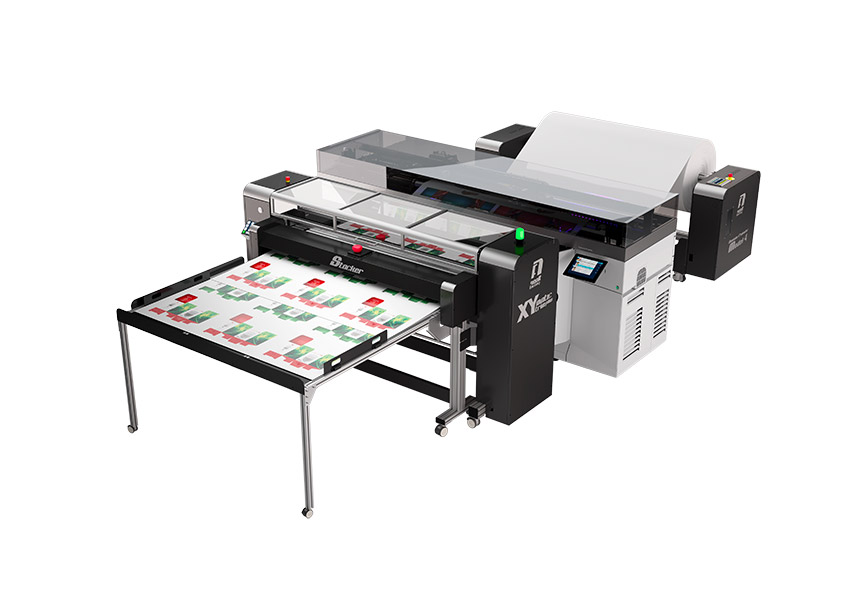

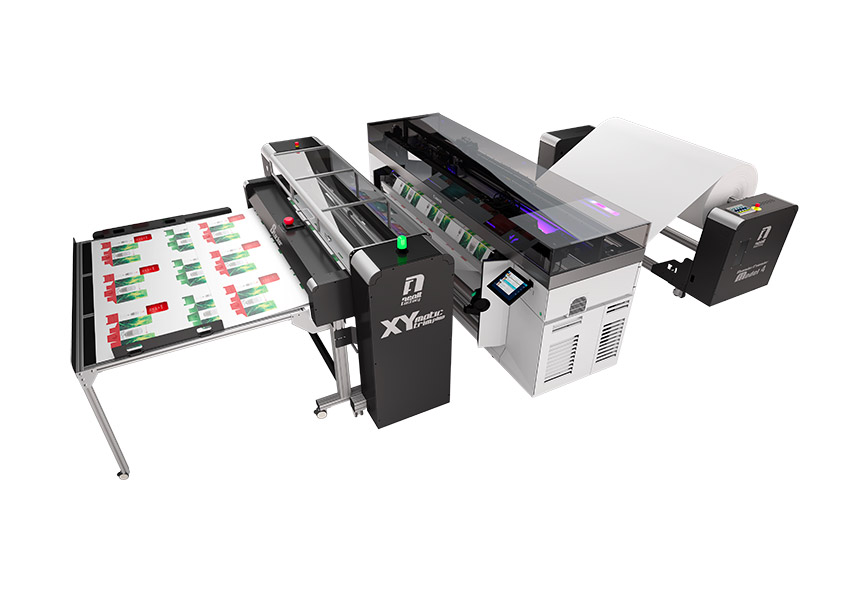

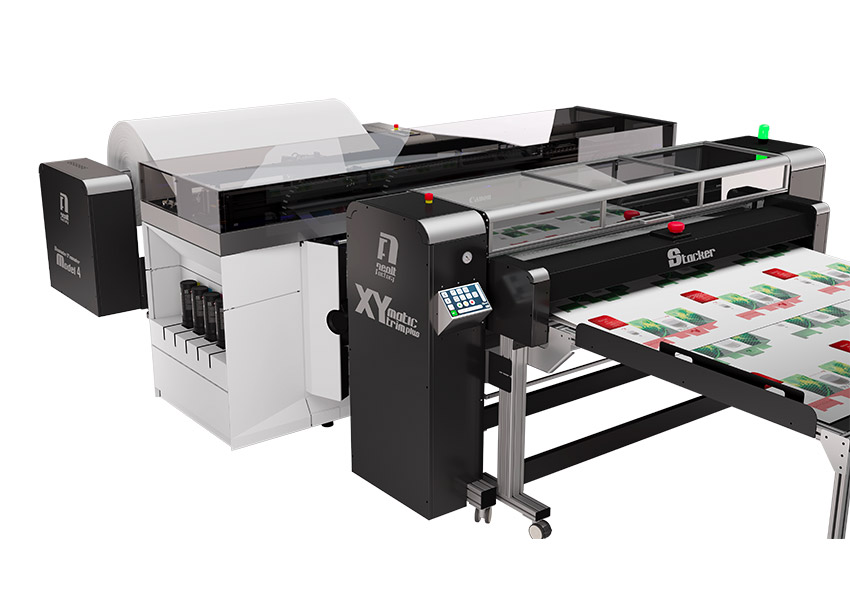

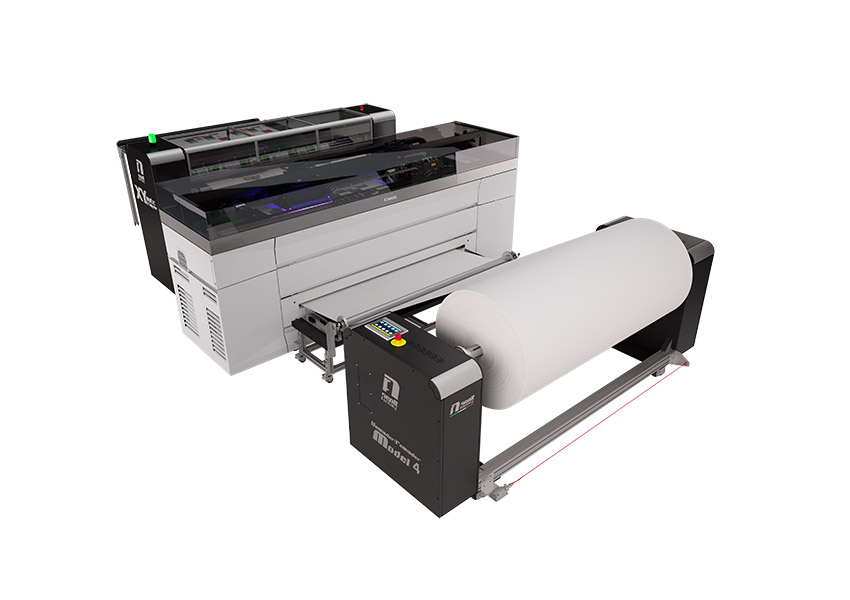

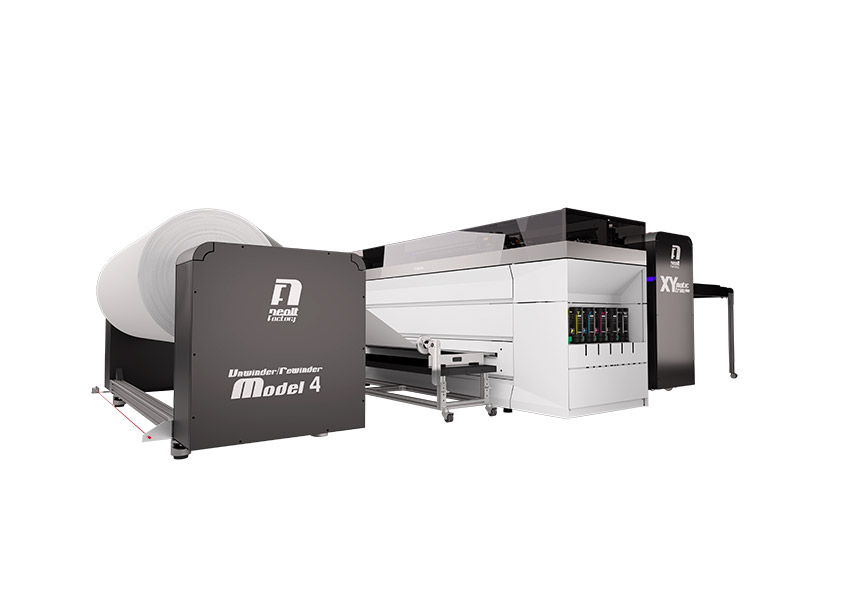

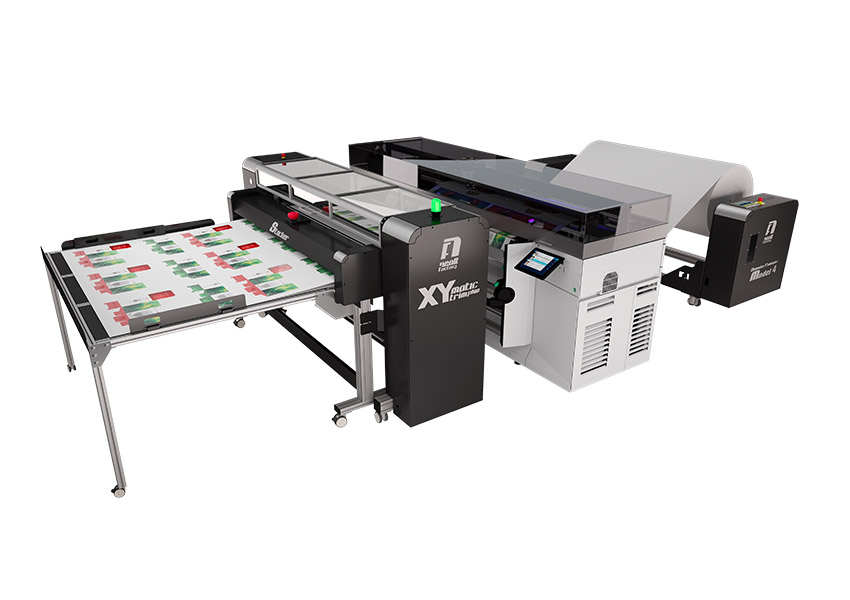

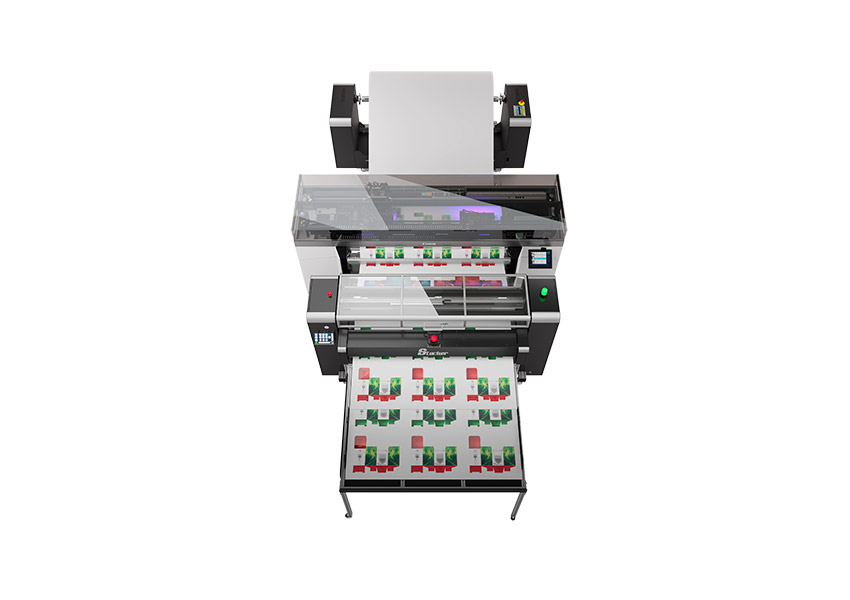

XY online with Canon Colorado will make the horizontal and vertical printing and cutting of your posters or wallpaper totally automatic it is a specific automatic wallpaper cutter, it is also a professional machine designed for paper cutting (laminated or encapsulated), canvas and polyester (with lining), reflective material, PVC banners, vinyl and vinyl adhesive, Backlit and front display, magnetic rubber and polycarbonate film.

Cutting Thickness (x/y) Max*
icona luce di taglio1,2mm / 1mm
Cutting Width
icona luce di taglio165cm
icona luce di taglio210cm
*The thickness may vary depending on the type of material
Watch the full video
xy-matic-trim-plus-wallpaper-01
xy-matic-trim-plus-wallpaper-02
Main features
  • Touch Screen LCD Display with Intuitive and Easy-to-Use Software
  • Patented alignment system
  • Self-learning function and saving cutting marks
  • Adjustable speed X & Y axis
  • Excellent visibility of the cutting area
  • Pneumatic Pinch Roll with silent compressor inside the machine
  • Automatic cutting waste collection system
  • Plug & Play
  • Up to 10 vertical cutting units
  • Dual-load roll
  • LED with emergency lights
  • New alignment system for vertical cutting units
  • Feed speed: The cutter adjust the speed according to the one of the printer
  • Horizontal cutting speed: 1-50 m/min
  • Pneumatic and self-sharpening vertical cutting units
  • Monolithic machine structure
  • Up to 10 customizable memories
  • Standard roll load of max 70 kg
Optional
  • Single cutting unit (max 10)
  • Double central cutting unit
  • Laser kit for vertical cutting units positioning
  • Motorized Stacker with automatic air flow blade
  • Automatic copy collection table
  • Fixed copy collection table
Materials
  • Wallpaper
  • Paper (laminated or encapsulated)
  • Canvas and polyester (with lining)
  • Reflective material
  • Banner in PVC
  • Vinyl & Vinyl Sticker
  • Backlit and front-facing display
  • Magnetic Rubber
  • Polycarbonate film
Technical Data

The manufacturer reserves the right to change the technical and aesthetic specifications without prior notice.

Dimensions

Cutting thickness

Feed speed

Vertical cutting unit (max)

Power consumption

Maximum Weight Wallpaper roll

1650 mm

X axis

Y axis

1,2 mm max

1 mm max

5-18 m/minuto

10 unità verticali

230V & 110V - 50Hz - 650W

500 kg

2100 mm

X axis

Y axis

1,2 mm max

1 mm max

5-18 m/minuto

10 unità verticali

230V & 110V - 50Hz - 650W

500 kg
Dimensions: 1650 mm & 2100mm
Cutting thickness (X): 1,2 mm max
Cutting thickness (Y): 1 mm max
Feed speed: 5-18 m/minuto
Vertical cutting unit (max): 10 unità verticali
Power consumption: 230V & 110V - 50Hz - 650W
Maximum Weight Wallpaper roll: 500 kg
Catalogues
View Catalogue
