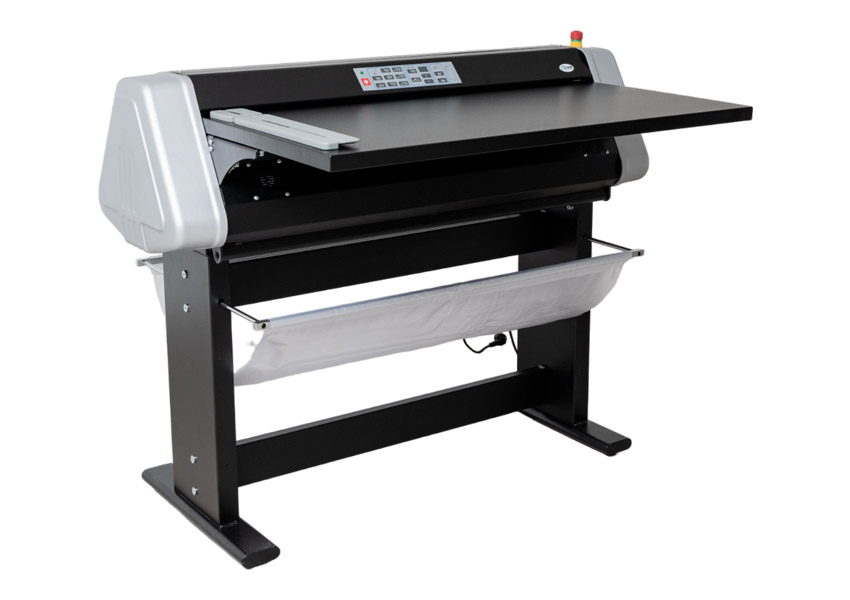

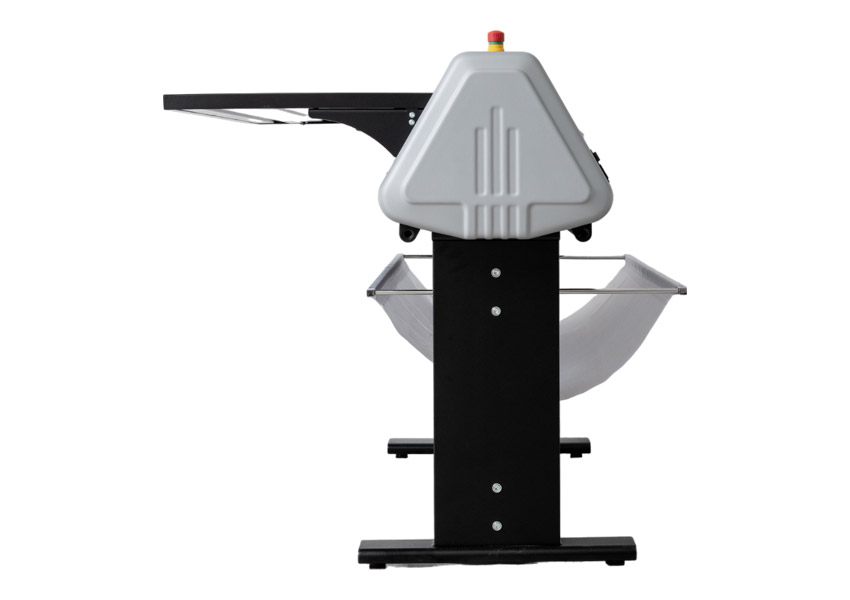

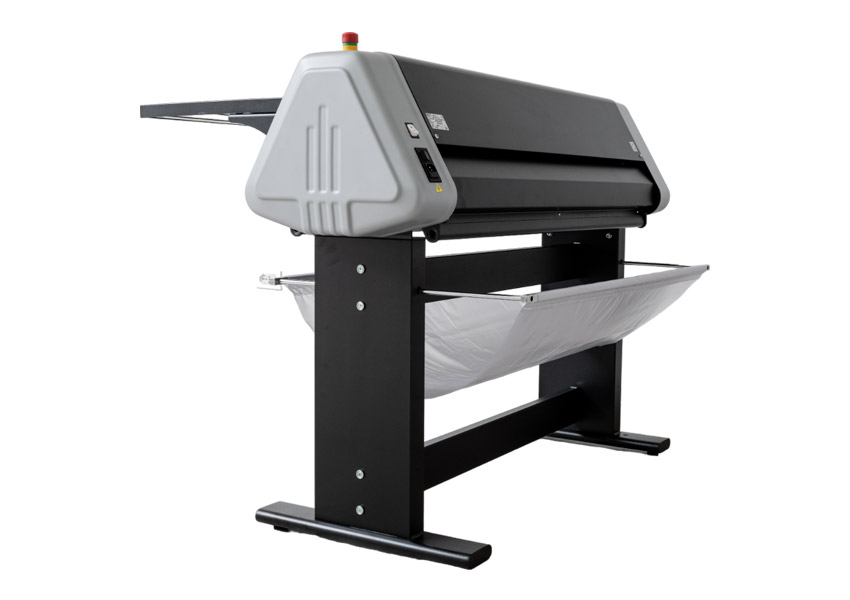

Neofold HS
Electric folding Machines for Technical Drawings
Neolt Factory manufactures electric folding machines for technical drawings, made entirely in Italy, the NEOFOLD HS model is equipped with a digital keyboard for size selection, our professional folding machine is sold complete, it does not need additional accessory.
Optional items
Weight
 | 130/155Kg |
Size
 | 920/1250mm |
Main features
-
Margins adjustable via keyboard 190 0 210 mm
-
The cross fold is selectable between 297 and 305 mm
-
The paper exit is selectable between front and back
-
Digital keyboard for sizes selection
-
Speed 35 meters/min
- A0 size in 5 seconds
-
Suitable for paper from 80 to 120 g/m2
-
Reference guide for easy paper insertion
-
Suitable for Blueback paper 115/120Gsm
-
Safety stop through emergency button
Technical Data
The manufacturer reserves the right to change the technical and aesthetic specifications without prior notice.
|
Datasheet |
920 |
1250 |
|
Larghezza di piega |
920 mm |
1250 mm |
|
Tipo di carta |
common, sensitized, plotter, blueback |
common, sensitized, plotter, blueback |
|
Grammi |
80÷ 110g/m2 |
80÷ 110g/m2 |
|
Modalità di piega |
normal, aligned, compensated with or without a 20-25-30mm edge, DIN rules and Cross Fold max A0 |
normal, aligned, compensated with or without a 20-25-30mm edge, DIN rules and Cross Fold max A0 |
|
Impianto elettrico |
230 V – 50/60 Hz 110V – 50/60 Hz |
230 V – 50/60 Hz 110V – 50/60 Hz |
|
Velocità di piega |
A0 format in 5 sec |
A0 format in 5 sec |
|
Consumi |
Max 3a |
Max 3a |
|
Dimensioni |
L1320 x P1000 x H1040 mm |
L1630 x P1000 x H1040 mm |
|
Peso |
130 Kg |
155 Kg |
