XY DTF

DTF Cutter

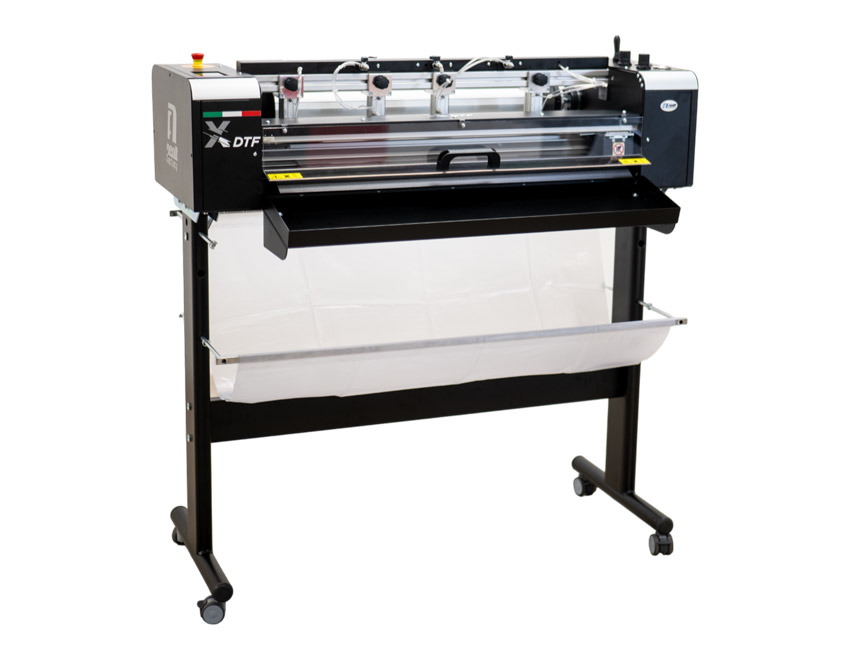

The XY DTF cutter is the cutting revolution, it will make the cutting of DTF material and other types of media totally automatic.

Cutting width of 80 cm. Equipped with an internal compressor that feeds the pneumatic pinch rolls and the vertical cutting units, it will also be possible to increase or decrease the pressure exerted on the cutting units to better adapt to different materials. Manual mechanical movement of the roll to correct alignment during cutting.

Intuitive touch screen with 2 different cutting modes:

  • Auto mode (program size and number of copies);
  • Cut Marks mode (the XY DTF will cut while reading through sensor the two cutting lines).
Cutting Width
icona luce di taglio850mm
Watch the full video
xy-dtf-01
Main features
  • Pinch roll pressure and vertical cutting units can be changed to adapt to different materials
  • Touch screen
  • Pneumatic cutting units (1 included as optional extra)
  • Video tutorials on the machine's touch screen
  • Self-sharpening horizontal blade
Optional
  • Vertical cutting units
  • Stand
  • Copy collection table
  • Rewinder
  • Online Kit for DTF printer
Cutting speed
  • 15 linear meters per minute maximum speed without horizontal cutting
  • 900 linear meters per hour, maximum speed without horizontal cutting
  • 90 linear meters per hour with horizontal cutting each 10 cm
Catalogues
View Catalogue
