XY Matic Trim
Plus Jumbo WallPaper
Plus Jumbo WallPaper
Wallpaper Cutter

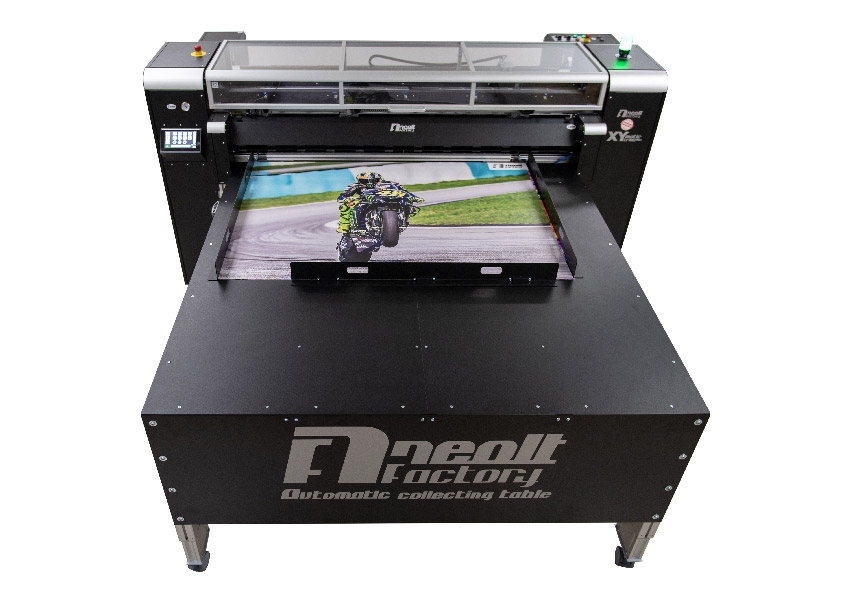

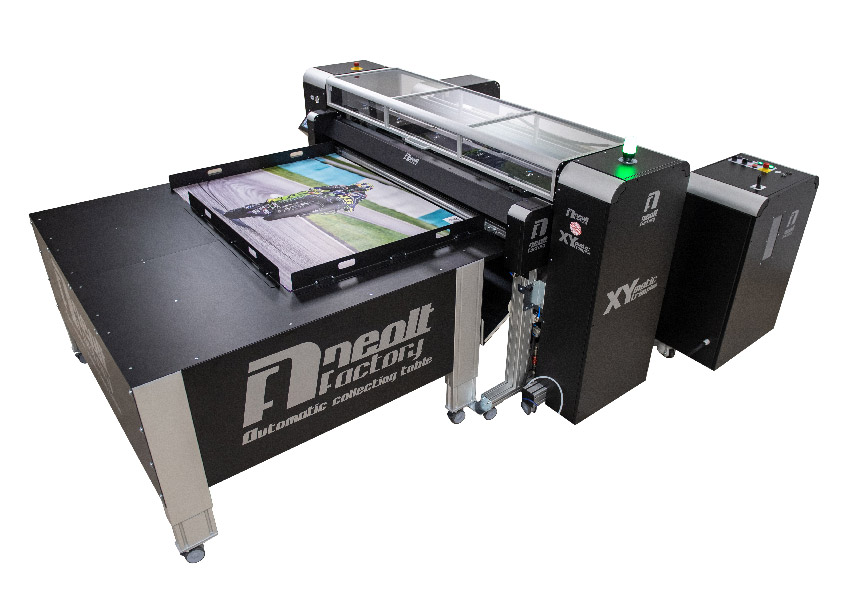

XY MATIC TRIM PLUS JUMBO WALLPAPER is a specific cutter for wallpaper from jumbo rolls up to 500kg, it is also designed for paper cutting (laminated or encapsulated), canvas and polyester (with lining), reflective material, PVC banners, vinyl and vinyl adhesive, backlit and front display, magnetic rubber and polycarbonate film. Thanks to its innovative wallpaper alignment system, it is able to precisely trim the material for a perfect installation without overlap.
Cutting Thickness (x/y) Max*
1,2mm / 1mm |
Cutting Width
165cm | |
210cm |
*The thickness may vary depending on the type of material
Main features
-
Touch Screen LCD Display with Intuitive and Easy-to-Use Software
-
Designed for 500kg Jumbo rolls
- Pneumatic Roll Holder with predisposition for loading by forklift
-
Automatic Vertical Alignment for Wallpaper -7/+7 cm
- Dual sensor to read cut marks
-
Self-learning function and saving cutting marks
-
Adjustable speed X & Y axis
-
Excellent visibility of the cutting area
-
Pneumatic Pinch Roll with silent compressor inside the machine
- Automatic cutting waste collection system
- Plug & Play
-
Up to 10 vertical cutting units
- Dual-load roll
-
LED with emergency lights
- New alignment system for vertical cutting units
- Feed speed: 5-18 m/min
- Horizontal cutting speed: 1-50 m/min
-
Pneumatic and self-sharpening vertical cutting units
- Monolithic machine structure
-
Up to 10 customizable memories
Optional
-
Single cutting unit (max 10)
-
Double central cutting unit
-
Laser kit for vertical cutting units positioning
-
Motorized Stacker with automatic air flow blade
-
Automatic copy collection table
-
Fixed copy collection table
Materials
- Wallpaper
- Paper (laminated or encapsulated)
- Canvas and polyester (with lining)
- Reflective material
- Banner in PVC
- Vinyl & Vinyl Sticker
- Backlit and front-facing display
- Magnetic Rubber
- Polycarbonate film
Technical Data
The manufacturer reserves the right to change the technical and aesthetic specifications without prior notice.
Dimensions |
Cutting thickness |
Feed speed |
Vertical cutting unit (max) |
Power consumption |
Maximum Weight Wallpaper roll |
||||
1650 mm |
|
5-18 m/minuto |
10 unità verticali |
230V & 110V - 50Hz - 650W |
500 kg |
||||
2100 mm |
|
5-18 m/minuto |
10 unità verticali |
230V & 110V - 50Hz - 650W |
500 kg |
Dimensions: 1650 mm & 2100 mm
Cutting thickness (X): 1,2 mm max
Cutting thickness (Y): 1 mm max
Feed speed: 5-18 m/minuto
Vertical cutting unit (max): 10 unità verticali
Power consumption: 230V & 110V - 50Hz - 650W
Maximum Weight Wallpaper roll: 500 kg
Cutting thickness (X): 1,2 mm max
Cutting thickness (Y): 1 mm max
Feed speed: 5-18 m/minuto
Vertical cutting unit (max): 10 unità verticali
Power consumption: 230V & 110V - 50Hz - 650W
Maximum Weight Wallpaper roll: 500 kg
