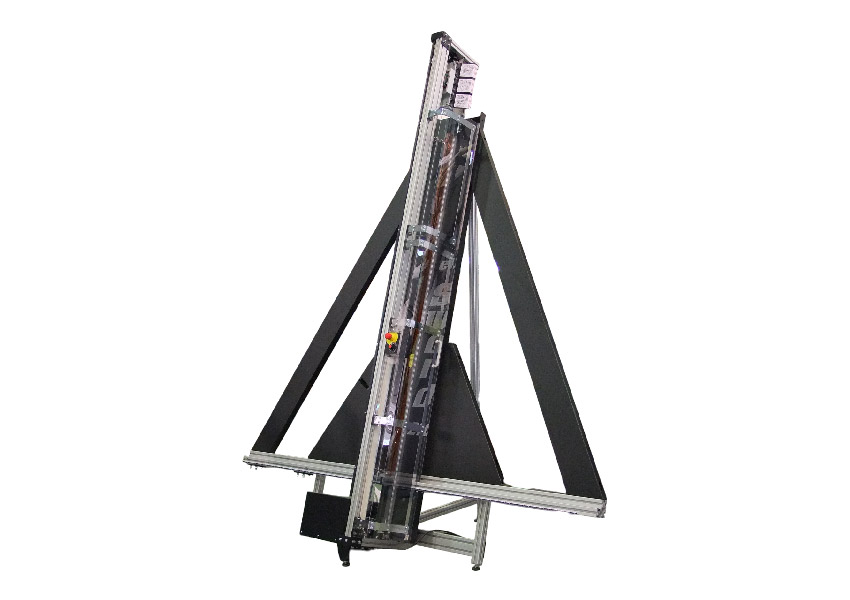

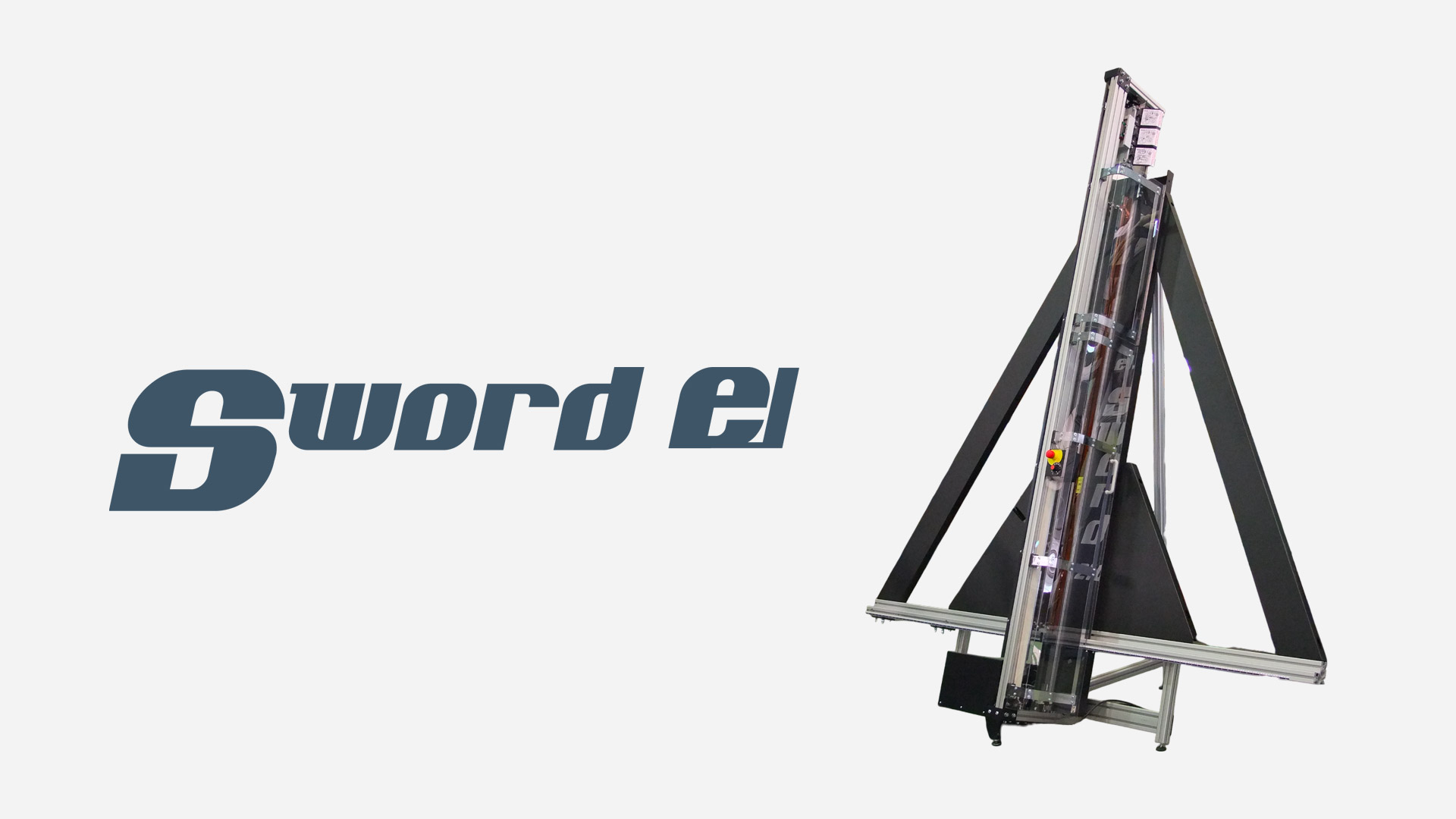

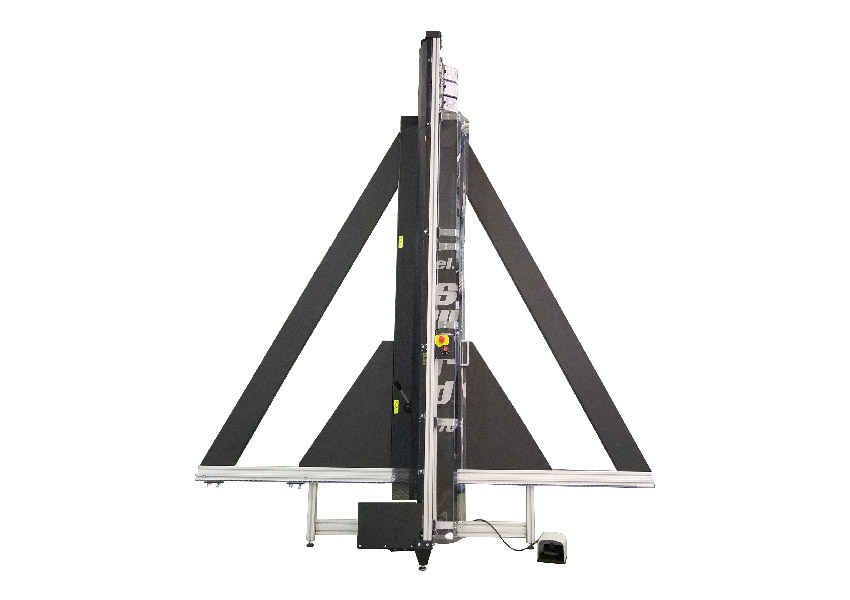

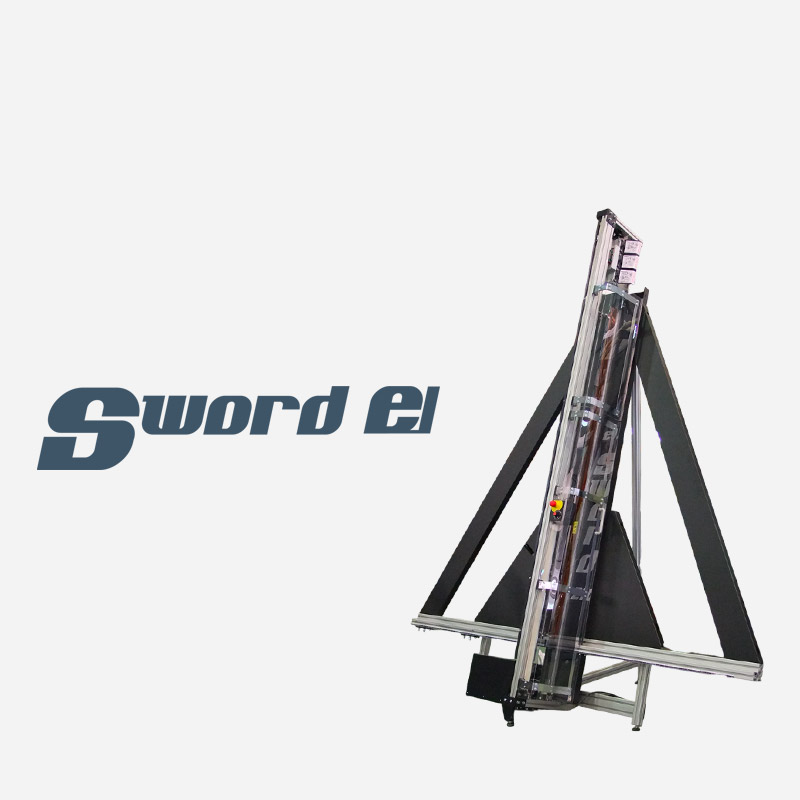

Sword EL
Vertical Electric Panel Cutter
SWORD EL vertical electric panel cutter made in Italy, available with 4 different heights and sizes, equipped with 2 blades with different thicknesses to best adapt to different materials.
Suitable for cardboard, foam kmount, spongy, polyurethane foam, 0.5 mm plastic, films, plastic honeycomb, leather, forex.
Cutting Thickness*
 | from 1,2mm to 30mm |
Available heights
 | from 1650mm to 3100mm |
*The thickness may vary depending on the type of material
Main features
-
Speed regulator through potentiometer
-
Millimetric base for material positioning
-
Sheet holder
-
Quick tool change: with two units always installed and the 3rd one as optional
-
Tool for dibond and aluminium cut
- Diamond wheel for glass engraving
- Oversized and strong base for large size panels
- Available in three heights: 165, 210, 250 or 310 cm
Optional
-
DIBOND blade up to 4 mm
-
Extensions for big panels
Materials
Fixed blade 1 Thickness from 1 to 30 mm
- Cardboard
- Foam kmount
- Spongy
- Polhyurethane expanded
- 0.5mm plastic
- Films
- Plastic Alveolar
Fixed blade 2 Thickness from 1 to 10 mm
- Leather
- Forex
