XY Matic Trim
Plus

XY Cutter

XY MATIC TRIM PLUS is an XY trimmer designed to make easy the cut of posters, paper (laminated or encapsulated), canvas, polyester, reflective material, PVC banners, vinyl and vinyl sticker, backlit and front display, magnetic rubber and polycarbonate film.

Cutting Thickness (x/y) Max *
icona luce di taglio1,2mm / 1mm
Cutting Width
icona luce di taglio165cm
icona luce di taglio210cm
*The thickness may vary depending on the type of material
Watch the full video

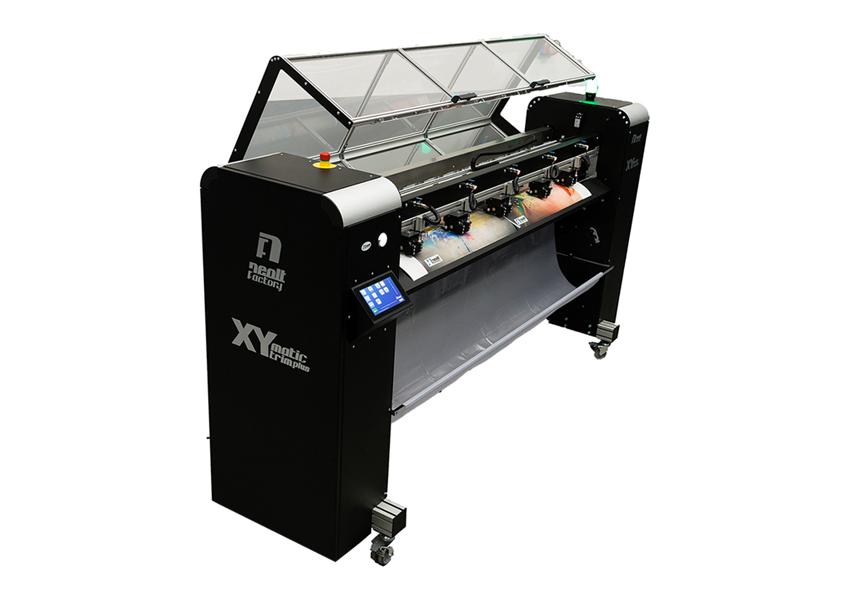

xy-matic-trim-plus-01

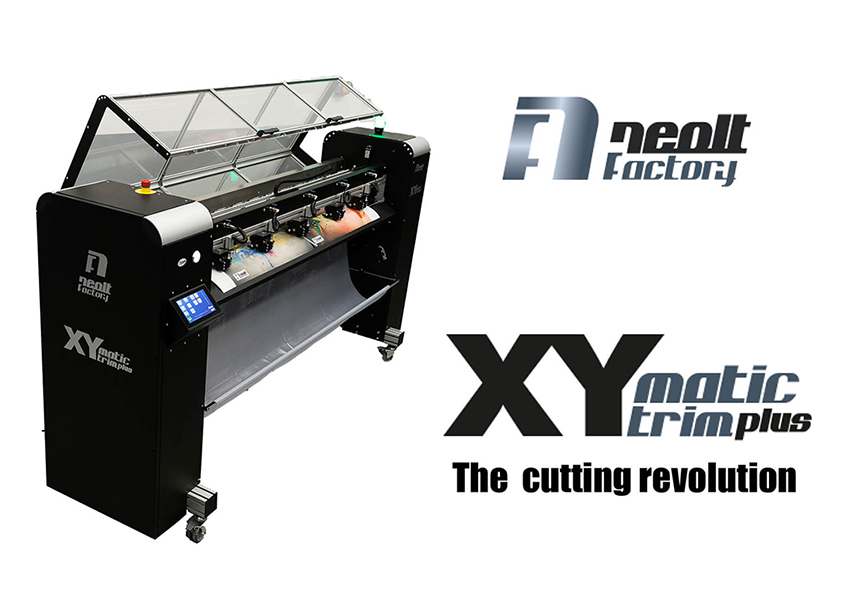

xy-matic-trim-plus-02
Main features
  • Touch Screen LCD Display with Intuitive and Easy-to-Use Software
  • Automatic alignment with cut marks
  • Dual sensor to read cut marks
  • Adjustable speed X & Y axis
  • Excellent visibility of the cutting area
  • Pneumatic Pinch Rolls with silent compressor inside the machine
  • Automatic Waste Collection System
  • Plug & Play
  • Up to 10 vertical cutting units
  • LED with emergency lights
  • Cutting mark identification and self-learning system
  • Feed speed: 18 meters per minute
  • Horizontal cutting speed: 1-50 m/min
  • Pneumatic and self-sharpening vertical cutting units
  • Monolithic machine structure
  • Standard roll load of max 70 kg
  • Up to 10 customizable memories
Optional
  • Single cutting unit (max 10)
  • Double central cutting unit
  • Laser kit for vertical cutting units positioning
  • Inclined table for collecting copies
  • XY Plus Wallpaper Kit
  • Motorized Stacker with automatic air flow blade
  • Automatic copy collection table
  • New Kit online for CANON COLORADO
  • New Fixed Stacker Collecting Table
Materials
  • Wallpaper
  • Paper (laminated or encapsulated)
  • Canvas and polyester (with lining)
  • Reflective material
  • Banner in PVC
  • Vinyl & vinyl Ashesive
  • Backlit and front-facing display
  • Magnetic Rubber
  • Polycarbonate film
Technical Data

The manufacturer reserves the right to change the technical and aesthetic specifications without prior notice.

Dimensions

Cutting thickness

Feed speed

Vertical cutting unit (max)

Power consumption

Maximum roll weight

1650 mm

X axis

Y axis

1,2 mm max

1 mm max

18 m/minuto

10 unità verticali

230V & 110V - 50Hz - 650W

70 kg

2100 mm

X axis

Y axis

1,2 mm max

1 mm max

18 m/minuto

10 unità verticali

230V & 110V - 50Hz - 650W

70 kg
Dimensions: 1650 mm & 2100 mm
Cutting thickness (X): 1,2 mm max
Cutting thickness (Y): 1 mm max
Feed speed: 18 m/minuto
Vertical cutting unit (max): 10 unità verticali
Power consumption: 230V & 110V - 50Hz - 650W
Maximum roll weight: 70 kg
Catalogues
View Catalogue
